Place-holder for P.5000 watches that do not use the small seconds function. The Panerai P.5000 has a diameter of 15¾ lignes (35.7 mm) and a thickness of 4.5 mm. It uses 21 jewels out of a total of 127 component parts. Is balance wheel oscillates at a frequency of 3 Hz, equivalent to 21,600 vibrations/hour. The design of its main plate and bridges recalls that of old movements in which the mechanism was contained between two plates concealing most of the wheels and allowing only a few details to be seen, such as the balance cock and the intermediate wheel. The P.5000 calibre has a variable inertia balance, its period of oscillation being adjusted by turning the little timing screws on the outside of the balance wheel. Using this system the balance spring is free, without the curb pins which would otherwise be used to modify its active length. The bridge supporting the balance is fixed by two screws beneath which are threaded rings which turn in both directions, the purpose of which is to adjust the endshake of the balance staff pivots. This technical solution helps the escapement to continue running perfectly in the event of shocks. The long power reserve of 192 hours, that is 8 days, is achieved by coupling the two spring barrels with toothed rims in series. The twin assembly enables longer, thinner springs to be used, resulting in a longer duration and greater uniformity in delivering energy to the movement.

8 other watches in the library run the Panerai P.5000 NS.

Panerai - PAM00581 Table Clock Sphere

Ref. PAM00581 · 65 mm

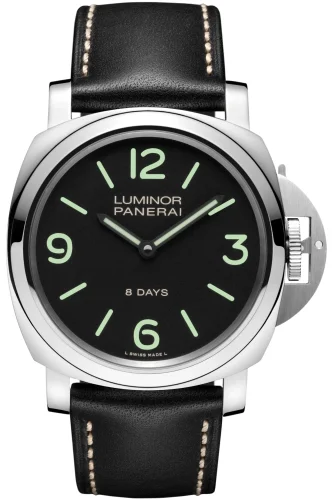

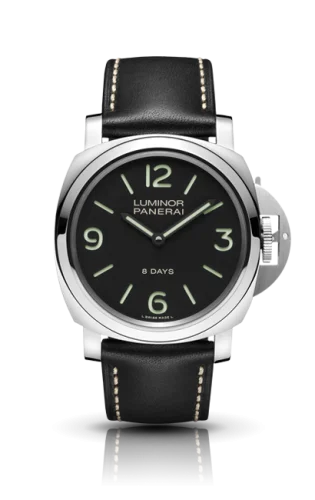

Panerai - PAM00561 Luminor Base 44 8 Days Stainless Steel / White
